19-5M15M6FA8 Powerhouse™ HTD® Pulleys

19-5M15M6FA8, A 6A25M019DF1508

Product Details for 19-5M15M6FA8

Comparable to: 19-5M15M6FA8, A 6A25M019DF1508,

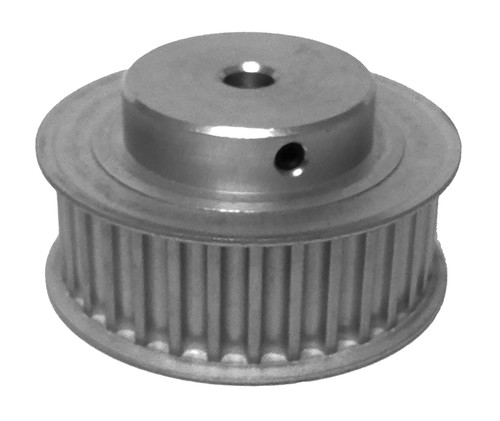

19-5M15M6FA8, Timing Pulley, Powerhouse HTD, 8 mm Bore, Aluminum

Specifications

Product Number 19-5M15M6FA8
Teeth 19
Tooth Style HTD 5mm
For Belt Width (mm) 15.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 8.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 16.50
Unit System Metric
P.D. (mm) 30.20
O.D. (mm) 29.10
Flange Diameter (mm) 33.30
Face Width (mm) 19.80
Overall Length (mm) 26.20
Hub Diameter (mm) 19.10
Weight (lb) 0.10
List Price (1-9 Qty.) (USD) 11.88
Discount Price (10-24 Qty.) (USD) 11.29
Discount Price (25-49 Qty.) (USD) 9.21
Discount Price (50-99 Qty.) (USD) 7.13
Discount Price (100-249 Qty.) (USD) 6.54
Part Number Cross Reference 19-5M15M6FA8, A 6A25M019DF1508,

Documentation

Download Catalog 2015_BBMAN_CATALOG_109.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 19-5M15M6FA8_REACH_cert
RoHS Certification 19-5M15M6FA8_RoHS_cert
