19-5MX15-6FS3, Timing Pulley

19-5MX15-6FS3 - Steel Powerhouse® MX Pulleys

19-5MX15-6FS3

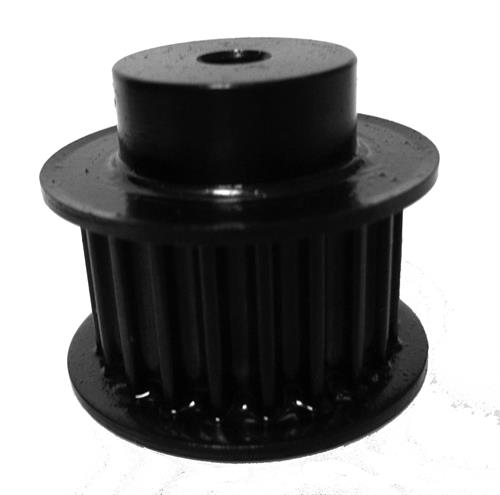

Click to Enlarge

19-5MX15-6FS3, Timing Pulley, Steel, Black Oxide

Learn more about 19-5MX15-6FS3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19-5MX15-6FS3
Teeth 19
Tooth Style 5MX
For Belt Width (mm) 15
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 1.191
Outside Diameter (in) 1.146
Flange Diameter (in) 1.438
Face Width (in) 0.890
Overall Length (in) 1.250
Hub Diameter (in) 0.880
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.710
Unit System Inch
P.D. (mm) 30.00
O.D. (mm) 29.10
MOQ 1
Weight (lb) 0.28
Part Number Cross Reference 19-5MX15-6FS3
