Powerhouse® Mx
>
Powerhouse® Mx Pulleys
>
19-5MX25-6FS3
19-5MX25-6FS3 Powerhouse® Mx Pulleys
Product Details for
19-5MX25-6FS3
Comparable to: 19-5MX25-6FS3, P19-5MGT-25-M
Buy Online
Request A Quote
Download CAD
View 3D Model
Choose a CAD format
View Spec Sheet

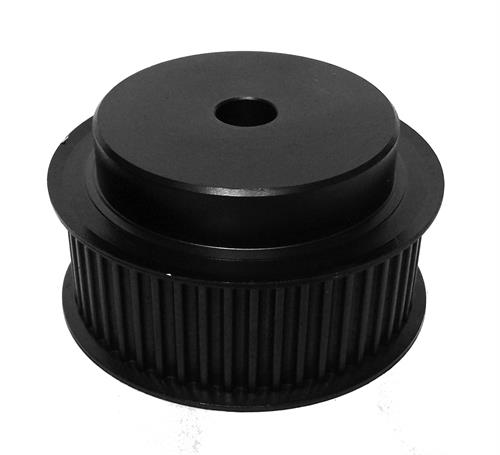

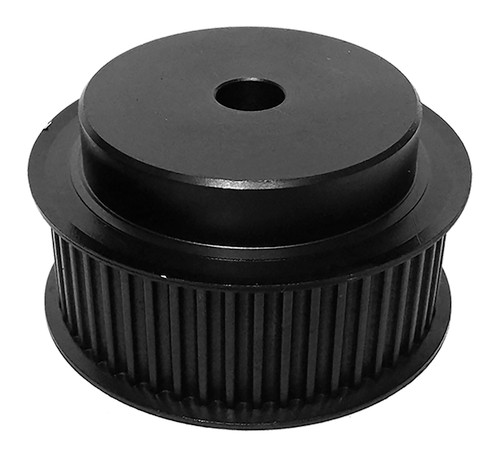

19-5MX25-6FS3, Timing Pulley, Powerhouse MX, 1/4 Inch Bore, Steel
Specifications
Product Number
19-5MX25-6FS3
Teeth
19
Tooth Style
GT2 5mm
For Belt Width (mm)
25.000
Type
6F
Material
Steel
Finish
Black Oxide
Flange Material
Steel
Bore Type
Minimum Plain Bore
Bore (in)
1/4 Inch Minimum Plain Bore
Pitch Diameter (in)
1.191
Outside Diameter (in)
1.146
Flange Diameter (in)
1.438
Face Width (in)
1.280
Overall Length (in)
1.650
Hub Diameter (in)
0.880
Min. Bore (in)
0.250
Pulley Belt Width (in)
1.100
Unit System
Inch
Max. Bore (in)
0.63
Weight (lb)
0.43
Part Number Cross Reference
19-5MX25-6FS3, P19-5MGT-25-M
Documentation
Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
