19H200-6FS8, Timing Pulley

19H200-6FS8 - Steel Imperial Pitch Pulleys

19H200-6FS8

Click to Enlarge

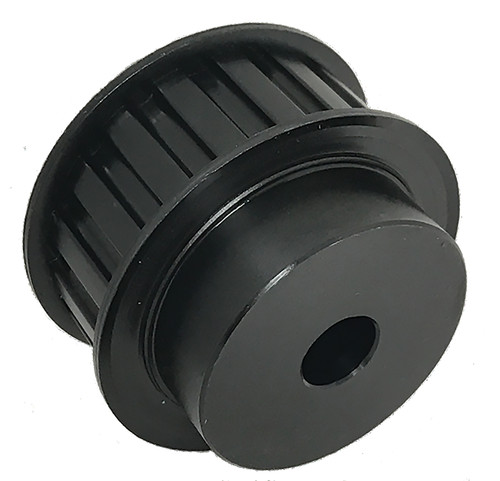

19H200-6FS8, Timing Pulley, Steel, Black Oxide

Learn more about 19H200-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19H200-6FS8
Teeth 19
Tooth Style H
For Belt Width (in) 2.0000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/4 Inch Minimum Plain Bore
Pitch Diameter (in) 3.024
Outside Diameter (in) 2.970
Flange Diameter (in) 3.256
Face Width (in) 2.344
Overall Length (in) 3.031
Hub Diameter (in) 2.375
Min. Bore (in) 0.750
Pulley Belt Width (in) 2.094
Unit System Inch
P.D. (mm) 77.00
O.D. (mm) 75.40
MOQ 1
Weight (lb) 4.51
Part Number Cross Reference 19H200, 19HB200, 19H200-3/4, 20181934, 114357, 19H200, 19H200MPB, P19H200, 19H200-6FS8
