19L050-6FS6 - Steel Imperial Pitch Pulleys

19L050-6FS6 - Steel Imperial Pitch Pulleys

Product Details for 19L050-6FS6

Comparable to: 19L050-6FS6, A 6C4-19DFB5016, A6C4-19DFB5016, PB19L050, 19LB050, 19L050-1/2, 20181936, 114303, 19L0

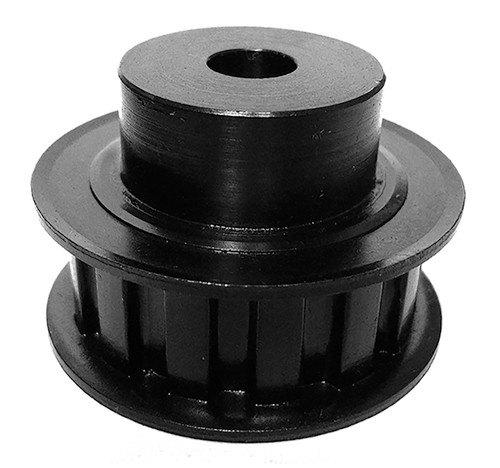

19L050-6FS6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Steel

Our 19L050-6FS6 Steel Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 19L050-6FS6
Teeth 19
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.268
Outside Diameter (in) 2.238
Flange Diameter (in) 2.500
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 1.687
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Max. Bore (in) 1.437
Weight (lb) 1.13
Part Number Cross Reference 19L050-6FS6, A 6C4-19DFB5016, A6C4-19DFB5016, PB19L050, 19LB050, 19L050-1/2, 20181936, 114303, 19L0
