19L075-6FS6, Timing Pulley

19L075-6FS6 - Steel Imperial Pitch Pulleys

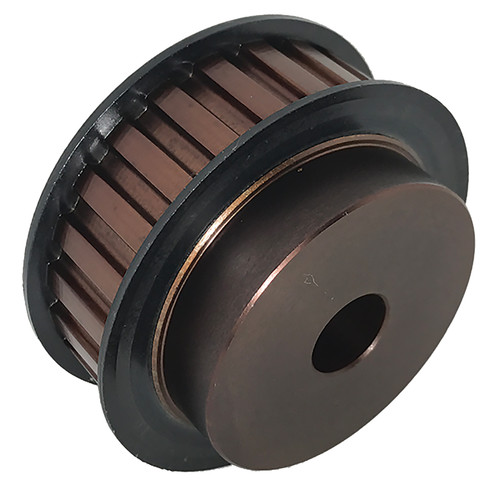

19L075-6FS6

Click to Enlarge

19L075-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 19L075-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19L075-6FS6
Teeth 19
Tooth Style L
For Belt Width (in) 0.7500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.268
Outside Diameter (in) 2.238
Flange Diameter (in) 2.500
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 1.687
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
P.D. (mm) 58.00
O.D. (mm) 56.80
MOQ 1
Weight (lb) 1.35
Part Number Cross Reference PB19L075, 19 L 075, 19LB075, 19L075-1/2, 20181937, 114314, 19L075, P19L075, 19L075-6FS6
