19L100-6FA6, Timing Pulley

19L100-6FA6 - Aluminum Imperial Pitch Pulleys

19L100-6FA6

Click to Enlarge

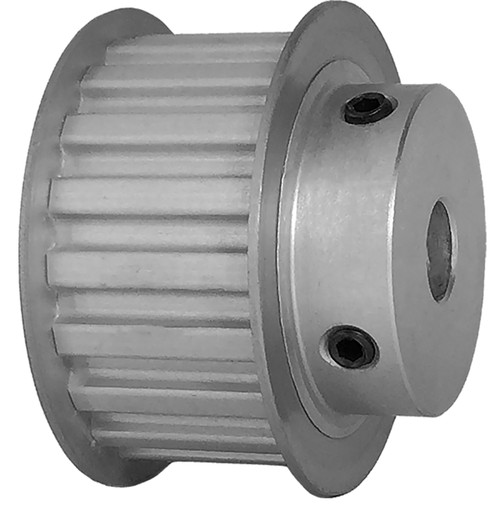

19L100-6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 19L100-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19L100-6FA6
Teeth 19
Tooth Style L
For Belt Width (in) 1.0000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 2.268
Outside Diameter (in) 2.238
Flange Diameter (in) 2.500
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 1.687
Min. Bore (in) 0.500
Unit System Inch
P.D. (mm) 58.00
O.D. (mm) 56.80
MOQ 1
Weight (lb) 0.58
Part Number Cross Reference 19L100-6FA6
Set Screw Quantity 2
