19L100-6FS6, Timing Pulley

19L100-6FS6

Click to Enlarge

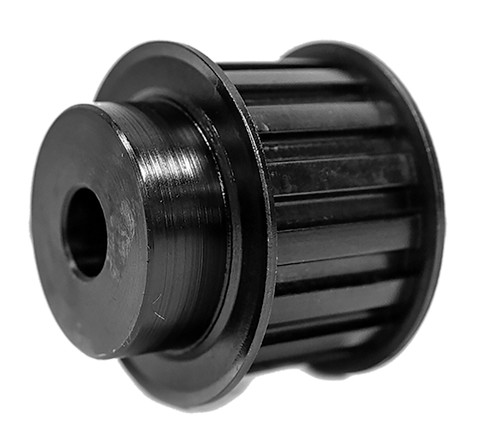

19L100-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 19L100-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	19L100-6FS6
Teeth	19
Tooth Style	L
For Belt Width (in)	1.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.268
Outside Diameter (in)	2.238
Flange Diameter (in)	2.500
Face Width (in)	1.250
Overall Length (in)	1.750
Hub Diameter (in)	1.687
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.070
Unit System	Inch
P.D. (mm)	58.00
O.D. (mm)	56.80
MOQ	1
Weight (lb)	1.60
Part Number Cross Reference	PB19L100, 19L100, 19LB100, 19L100-1/2, 20181938, 19L100 X 1/2 MPB, 19L100, 19L100MPB, P19L100, P19L100-PB, 19L100-6FS6, 114325, 19L100-6FS6
