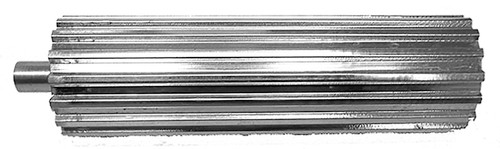

19T10-PS160A, Timing Pulley Stock

19T10-PS160A, A6A38M019T16, A 6A38M019T16, 19T10-PS-160

19T10-PS160A

19T10-PS160A, Timing Pulley Stock, Aluminum

Learn more about 19T10-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19T10-PS160A
Teeth 19
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 2.386
Outside Diameter (in) 2.307
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 60.60
O.D. (mm) 58.60
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 2.39
Part Number Cross Reference A 6A38M019T16, A6A38M019T16, 19T10-PS-160, T1019, 19T10-PS160A
Shank Length (in) 1.0000

Comparable to: A 6A38M019T16, A6A38M019T16, 19T10-PS-160, T1019, 19T10-PS160A
