19XL037-6FA5, Timing Pulley

19XL037-6FA5 - Aluminum Imperial Pitch Pulleys

19XL037-6FA5

Click to Enlarge

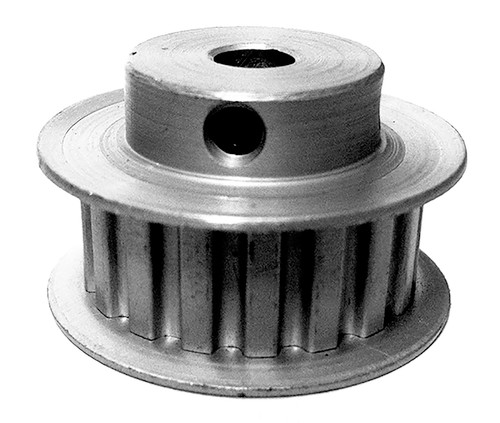

19XL037-6FA5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 19XL037-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19XL037-6FA5
Teeth 19
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 1.210
Outside Diameter (in) 1.190
Flange Diameter (in) 1.437
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.875
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 31.00
O.D. (mm) 30.20
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference 19XL037 X 3/8 6F, TP20A5W6-20, 19XL037-1A X 3/8, 19XL037-6FA5, 19XL037-6FA5
Set Screw Quantity 2
