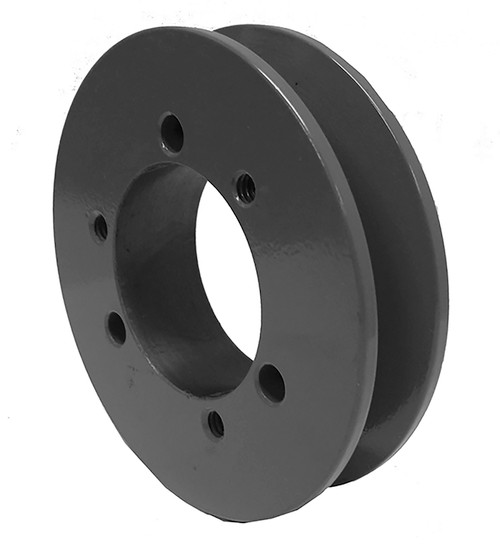

1B38SH, V-Belt Pulley

1B38SH

1B38SH, V-Belt Pulley, Cast Iron

Learn more about 1B38SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	1B38SH
Type	D-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SH Bushing
Outside Diameter (in)	4.150
Face Width (in)	0.875
Min. Bore (in)	0.375
Unit System	Inch
Bushing	SH
MOQ	1
Pitch Dia. "A"	3.400
Pitch Dia. "B"	3.800
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	2.40
Part Number Cross Reference	QD1A3.4/B3.8, 1B38SH, 3.8-1B-SH, 20179205, 1B38-SH SHEAVE, 381B, 1B38, 1B38SH, 118285, 1B38SH
Grooves	1
