1B64SDS, V-Belt Pulley

1B64SDS, 6.4-1B-SDS, 20179388, 641B, 1B64

Product Details for 1B64SDS

Comparable to: QD1A6.2/B6.4, 1B64.SDS, 1B64SDS, 6.4-1B-SDS, 20179388, 641B, 1B6.4, 1/B640SDS, 82246760, 1B64, 1BQ64

Click to Enlarge

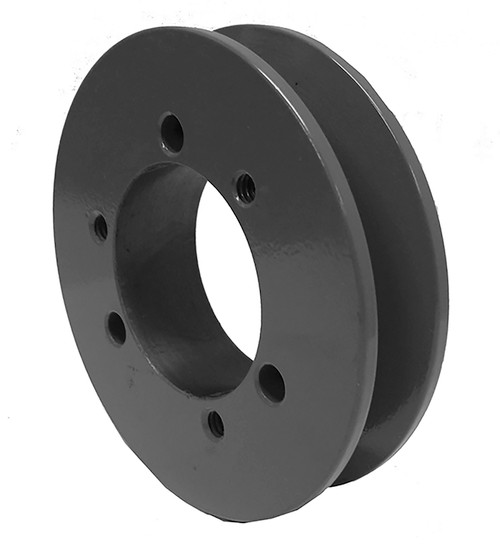

1B64SDS, V-Belt Pulley, Cast Iron

Learn more about 1B64SDS V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 1B64SDS
Type C2
Material Cast Iron
Bore Type QD
Bore (in) SDS
Outside Diameter (in) 6.750
Face Width (in) 0.875
Min. Bore (in) 0.500
Unit System Inch
Bushing SDS
MOQ 1
Pitch Dia. "A" 6.000
Pitch Dia. "B" 6.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 6.80
Part Number Cross Reference QD1A6.2/B6.4, 1B64.SDS, 1B64SDS, 6.4-1B-SDS, 20179388, 641B, 1B6.4, 1/B640SDS, 82246760, 1B64, 1BQ64
Grooves 1
