1C100SF, V-Belt Pulley

1C100SF, QD1C10

Product Details for 1C100SF

Comparable to: QD1C10.0, 1C100.SF, 10.0-1C-Sf, 1C10.0, 1/C1000SF

Click to Enlarge

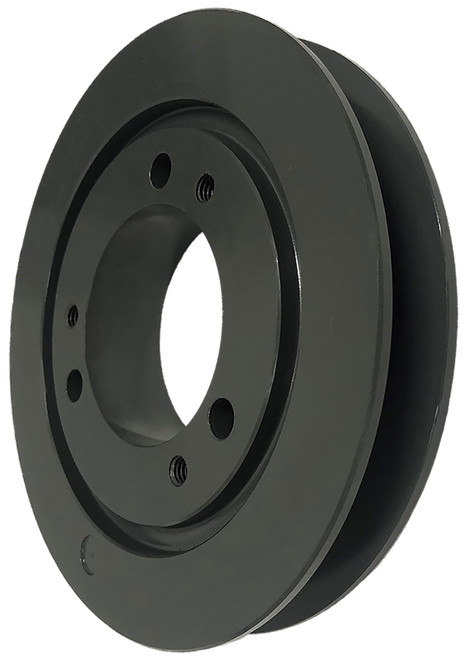

1C100SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 1C100SF in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 1C100SF
Type D3
Material Cast Iron
Bore Type QD
Outside Diameter (in) 10.400
Face Width (in) 1.250
Overall Length (in) 2.063
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
L (in) 2.0625
MOQ 1
Weight (lb) 14.20
Part Number Cross Reference QD1C10.0, 1C100.SF, 10.0-1C-Sf, 1C10.0, 1/C1000SF
Grooves 1
Set Screw Quantity 0
