20-2P03-6CA3, Timing Pulley

20-2P03-6CA3 - Aluminum Powerhouse® Pulleys

20-2P03-6CA3

Click to Enlarge

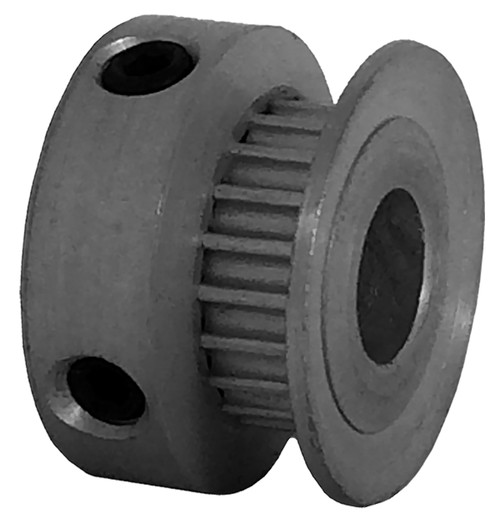

20-2P03-6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-2P03-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-2P03-6CA3
Teeth 20
Tooth Style 2P
For Belt Width (mm) 3.00
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.501
Outside Diameter (in) 0.481
Flange Diameter (in) 0.685
Face Width (in) 0.204
Overall Length (in) 0.438
Hub Diameter (in) 0.685
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.160
Unit System Inch
P.D. (mm) 13.00
O.D. (mm) 12.20
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A51-020DF0308, A6A51-020DF0308, 20-2GT06-1A X 1/4, 20-2P03-6CA3, 20-2P03-6CA3
Set Screw Quantity 2
