20-2P06M6FA5, Timing Pulley

20-2P06M6FA5

Click to Enlarge

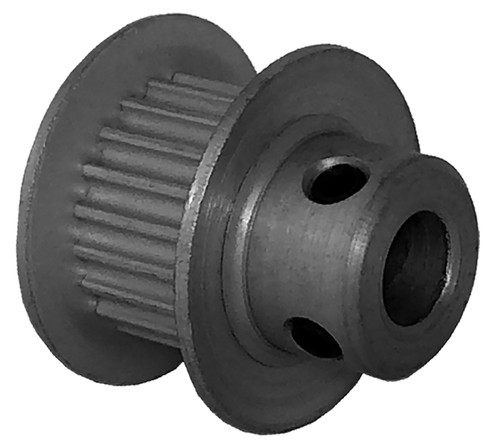

20-2P06M6FA5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-2P06M6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20-2P06M6FA5
Teeth	20
Tooth Style	2P
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	5.000
Bore Description	5 mm Finished Bore
Bore (mm)	5.00
Pitch Diameter (in)	0.501
Outside Diameter (in)	0.481
Flange Diameter (in)	0.685
Face Width (in)	0.389
Overall Length (in)	0.625
Hub Diameter (in)	0.364
Pulley Belt Width (in)	0.290
Pulley Belt Width (mm)	7.20
Unit System	Metric
Belt Width (mm)	7.20
P.D. (mm)	12.70
O.D. (mm)	12.20
Flange Diameter (mm)	17.40
Face Width (mm)	9.90
Overall Length (mm)	15.90
Hub Diameter (mm)	9.20
MOQ	1
Weight (lb)	0.01
Part Number Cross Reference	20-2P06M6FA5, 20-2P06M6FA5
Set Screw Quantity	2
