20-3M06-6FA3, Timing Pulley

20-3M06-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 20-3M06-6FA3

Comparable to: A 6A23-020DF0608, A6A23-020DF0608, P20-3M-06AL, 78820016, PT020F08L06T, 20-3M-06 X 1/4, 00-442682

Click to Enlarge

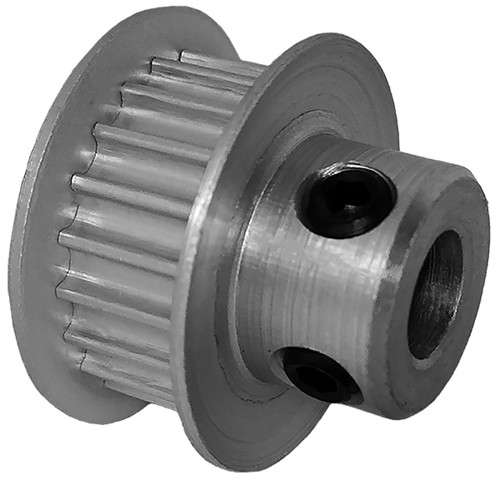

20-3M06-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-3M06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-3M06-6FA3
Teeth 20
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.722
Flange Diameter (in) 0.895
Face Width (in) 0.386
Overall Length (in) 0.691
Hub Diameter (in) 0.500
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.280
Unit System Inch
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A23-020DF0608, A6A23-020DF0608, P20-3M-06AL, 78820016, PT020F08L06T, 20-3M-06 X 1/4, 00-442682
Set Screw Quantity 2
