20-3M06-IA3, Timing Pulley

20-3M06-IA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

20-3M06-IA3

Click to Enlarge

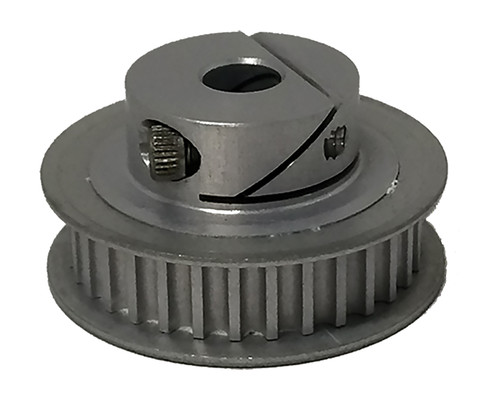

20-3M06-IA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-3M06-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-3M06-IA3
Teeth 20
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.722
Flange Diameter (in) 0.895
Face Width (in) 0.386
Overall Length (in) 0.688
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 19.00
O.D. (mm) 18.30
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 20-3M06-IA3, 20-3M06-IA3
