20-3M06M6A6, Timing Pulley

20-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys

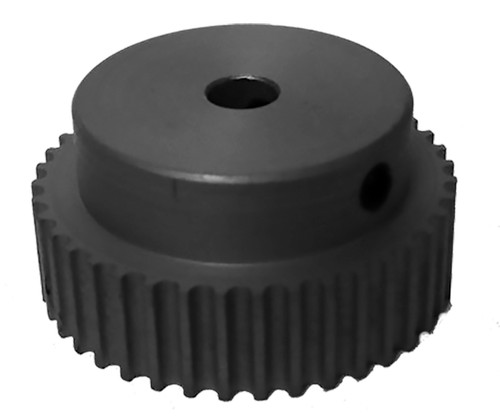

20-3M06M6A6

20-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

20-3M06M6A6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-3M06M6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-3M06M6A6
Teeth 20
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.722
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 19.00
O.D. (mm) 18.30
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 12.70
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A23M020NF0606, A6A23M020NF0606, 20-3M06M6A6, 20-3M06M6A6
Set Screw Quantity 2
