20-5M09-6A3, Timing Pulley

20-5M09-6A3 - Aluminum Powerhouse®HTD® Pulleys

20-5M09-6A3

Click to Enlarge

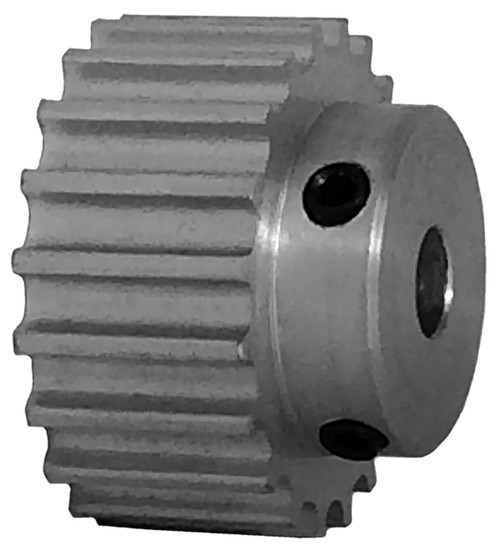

20-5M09-6A3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5M09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-5M09-6A3
Teeth 20
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.253
Outside Diameter (in) 1.208
Face Width (in) 0.546
Overall Length (in) 0.796
Hub Diameter (in) 0.812
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 30.70
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A25-020NF0908, A6A25-020NF0908, 20M5-L09M-6, PT020G08L09N, 20-5M09-6A3, 20-5M09-6A3
Set Screw Quantity 2
