20-5M15-6FA6, Timing Pulley

20-5M15-6FA6 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 20-5M15-6FA6

Comparable to: A 6A25-020DF1516, A6A25-020DF1516

Click to Enlarge

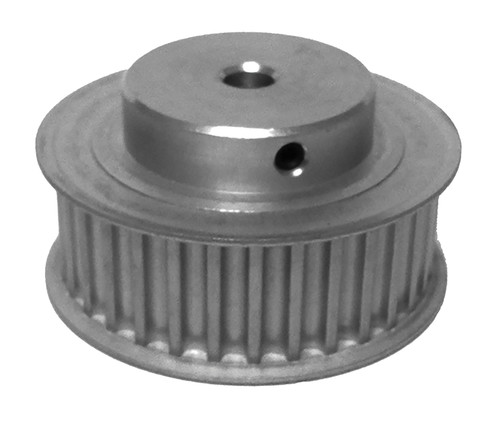

20-5M15-6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5M15-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-5M15-6FA6
Teeth 20
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 1.253
Outside Diameter (in) 1.208
Flange Diameter (in) 1.375
Face Width (in) 0.780
Overall Length (in) 1.025
Hub Diameter (in) 0.812
Min. Bore (in) 0.500
Unit System Inch
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6A25-020DF1516, A6A25-020DF1516
Set Screw Quantity 2
