20-5P09-6FA3, Timing Pulley

20-5P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 20-5P09-6FA3

Comparable to: 20-5P09-6FA3, A 6A55-020DF0908, A6A55-020DF0908, P20-5MGT-09AL, 78450920

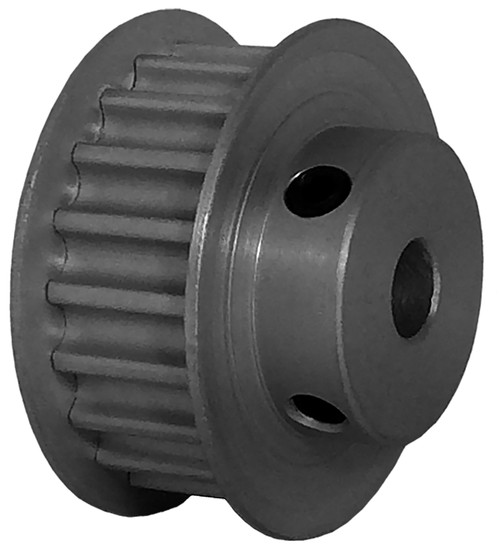

Click to Enlarge

20-5P09-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-5P09-6FA3
Teeth 20
Tooth Style GT 5mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.253
Outside Diameter (in) 1.208
Flange Diameter (in) 1.375
Face Width (in) 0.546
Overall Length (in) 0.796
Hub Diameter (in) 0.813
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.563
Weight (lb) 0.07
Part Number Cross Reference 20-5P09-6FA3, A 6A55-020DF0908, A6A55-020DF0908, P20-5MGT-09AL, 78450920
