20-5P15-6FA3, Timing Pulley

20-5P15-6FA3 - Aluminum Powerhouse® Pulleys

20-5P15-6FA3

Click to Enlarge

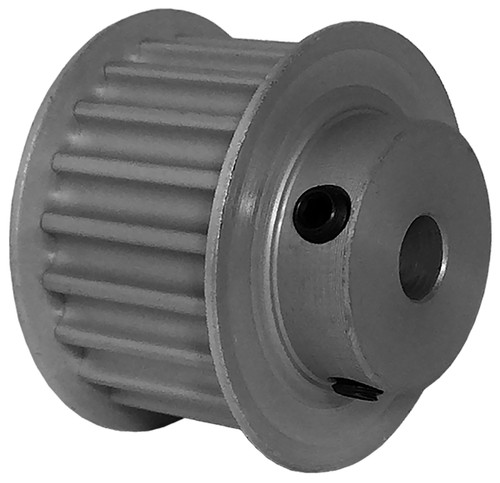

20-5P15-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5P15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-5P15-6FA3
Teeth 20
Tooth Style 5P
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.253
Outside Diameter (in) 1.208
Flange Diameter (in) 1.375
Face Width (in) 0.781
Overall Length (in) 1.031
Hub Diameter (in) 0.813
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 30.70
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference P20-5MGT-15AL, 20-5P15-6FA3
Set Screw Quantity 2
