20H150-6FS8, Timing Pulley

20H150-6FS8 - Steel Imperial Pitch Pulleys

20H150-6FS8

Click to Enlarge

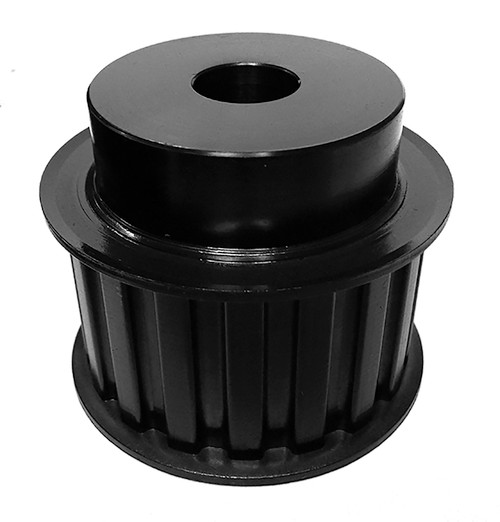

20H150-6FS8, Timing Pulley, Steel, Black Oxide

Learn more about 20H150-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20H150-6FS8
Teeth 20
Tooth Style H
For Belt Width (in) 1.5000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/4 Inch Minimum Plain Bore
Pitch Diameter (in) 3.183
Outside Diameter (in) 3.129
Flange Diameter (in) 3.420
Face Width (in) 1.812
Overall Length (in) 2.625
Hub Diameter (in) 2.500
Min. Bore (in) 0.750
Pulley Belt Width (in) 1.562
Unit System Inch
P.D. (mm) 81.00
O.D. (mm) 79.50
MOQ 1
Weight (lb) 4.27
Part Number Cross Reference  20H150, 20HB150, 114348, 20H150MPB, P20H150, 20H150-6FS8
