20L075-6FS6, Timing Pulley

20L075-6FS6 - Steel Imperial Pitch Pulleys

20L075-6FS6

Click to Enlarge

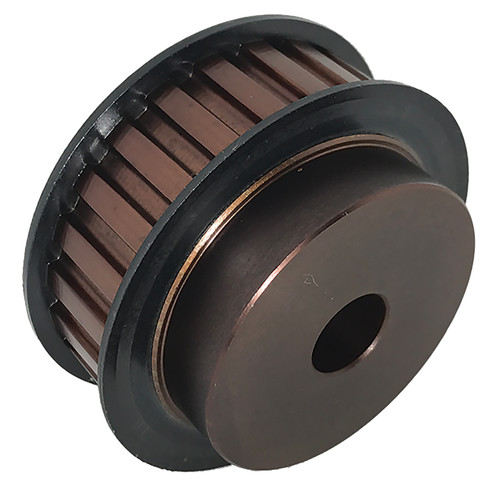

20L075-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 20L075-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20L075-6FS6
Teeth 20
Tooth Style L
For Belt Width (in) 0.7500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.387
Outside Diameter (in) 2.357
Flange Diameter (in) 2.625
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 1.687
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
P.D. (mm) 61.00
O.D. (mm) 59.90
MOQ 1
Weight (lb) 1.47
Part Number Cross Reference  20L075, 20 L 075, 20LB075, 114315, P20L075, 20L075-6FS6
