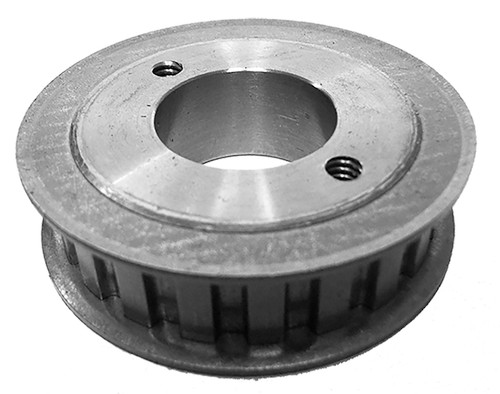

20LG050, Timing Pulley

20LG050 - Steel Imperial Pitch Pulleys

20LG050

Click to Enlarge

20LG050, Timing Pulley, Steel

Learn more about 20LG050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20LG050
Teeth 20
Tooth Style L
For Belt Width (in) 0.5000
Type 4
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for G Bushing
Pitch Diameter (in) 2.387
Outside Diameter (in) 2.357
Flange Diameter (in) 2.625
Face Width (in) 0.750
Overall Length (in) 1.375
Min. Bore (in) 0.375
Unit System Inch
Bushing G
P.D. (mm) 61.00
O.D. (mm) 59.90
MOQ 1
Weight (lb) 0.70
Part Number Cross Reference 20LG050, 20LG050, 20LG050
