20XH200-6FS10, Timing Pulley

20XH200-6FS10 - Steel Imperial Pitch Pulleys

20XH200-6FS10

Click to Enlarge

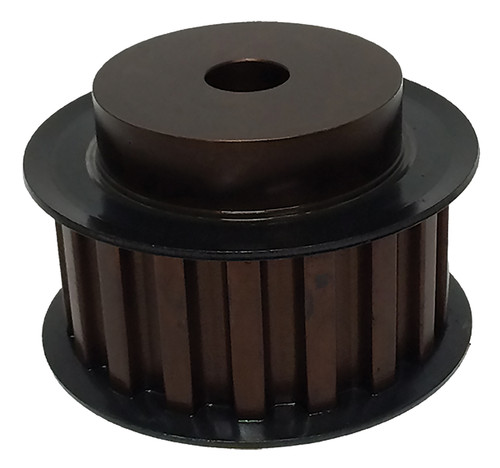

20XH200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 20XH200-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20XH200-6FS10
Teeth 20
Tooth Style XH
For Belt Width (in) 2.0000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1 Inch Minimum Plain Bore
Pitch Diameter (in) 5.570
Outside Diameter (in) 5.460
Flange Diameter (in) 6.125
Face Width (in) 2.563
Overall Length (in) 3.563
Hub Diameter (in) 4.125
Min. Bore (in) 1.000
Unit System Inch
P.D. (mm) 142.00
O.D. (mm) 138.70
MOQ 1
Weight (lb) 10.58
Part Number Cross Reference 20XH200, 20 XH 200, 20XHB200, 20XH200MPB, M20XH200, 20XH200-6FS10
