20XHQ300, Timing Pulley

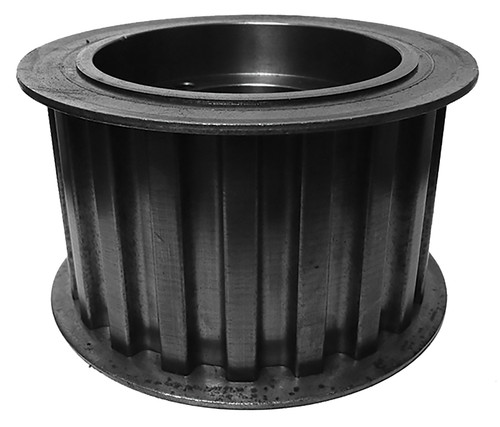

20XHQ300 - Cast Iron Imperial Pitch Pulleys

20XHQ300

20XHQ300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

20XHQ300, Timing Pulley, Cast Iron

Learn more about 20XHQ300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20XHQ300
Teeth 20
Tooth Style XH
For Belt Width (in) 3.0000
Type 10
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q2 Bushing
Pitch Diameter (in) 5.570
Outside Diameter (in) 5.460
Flange Diameter (in) 6.125
Face Width (in) 3.625
Overall Length (in) 3.781
Min. Bore (in) 1
Unit System Inch
Bushing Q2
P.D. (mm) 142.00
O.D. (mm) 138.70
MOQ 1
Weight (lb) 12.81
Part Number Cross Reference 20XHQ300, 20XHQ300, 20XHQ300
