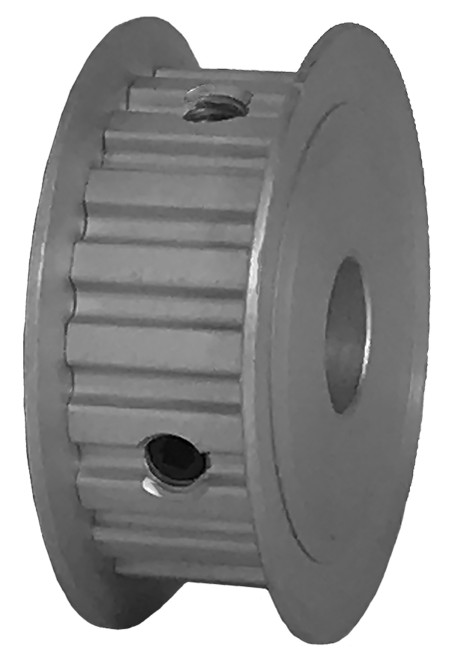

20XL037-3FA5, Timing Pulley

20XL037-3FA5

Click to Enlarge

20XL037-3FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 20XL037-3FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20XL037-3FA5
Teeth	20
Tooth Style	XL
For Belt Width (in)	0.3750
Type	3F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	1.273
Outside Diameter (in)	1.253
Flange Diameter (in)	1.500
Face Width (in)	0.563
Overall Length (in)	0.563
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	32.00
O.D. (mm)	31.80
MOQ	1
Weight (lb)	0.07
Part Number Cross Reference	20XL037 3/8 3FA, 20XL037-5A X 3/8, 20XL037-3FA5, 20XL037-3FA5
Set Screw Quantity	2
