Product Details for 20XL037-3FA6

Comparable to: 20XL037-3FA6, A 6A3-20H3716, A6A3-20H3716

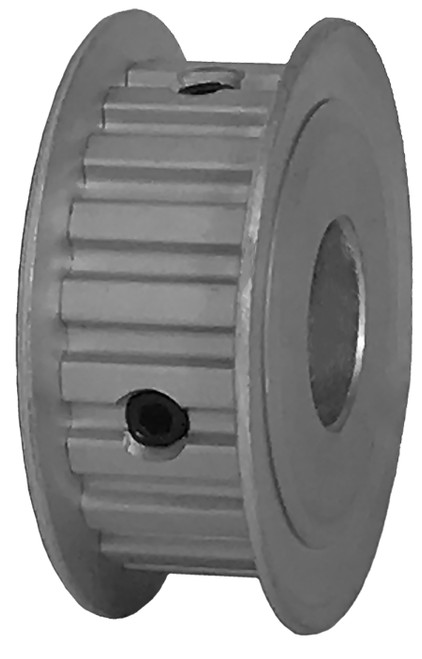

20XL037-3FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

B&B Manufacturing carries 20XL037-3FA6 Aluminum Imperial Pitch Pulleys in small & large pitches to accomodate various industries. Contact us today for a free quote!

Specifications

Product Number 20XL037-3FA6
Teeth 20
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 1.273
Outside Diameter (in) 1.253
Flange Diameter (in) 1.500
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 0.9405
Weight (lb) 0.07
Part Number Cross Reference 20XL037-3FA6, A 6A3-20H3716, A6A3-20H3716
