Product Details for 20XL037-6FS6

Comparable to: 20XL037-6FS6, A 6C3-20DF03716, A6C3-20DF03716

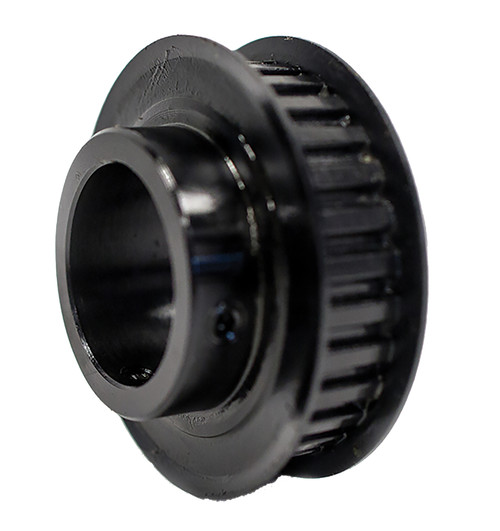

20XL037-6FS6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Steel

B&B Manufacturing carries 20XL037-6FS6 Steel Imperial Pitch Pulleys in small & large pitches to accomodate various industries. Contact us today for a free quote!

Specifications

Product Number 20XL037-6FS6
Teeth 20
Tooth Style XL
For Belt Width (in) 0.375
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 1.273
Outside Diameter (in) 1.253
Flange Diameter (in) 1.500
Face Width (in) 0.563
Overall Length (in) 0.875
Hub Diameter (in) 0.937
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 0.687
Weight (lb) 0.15
Part Number Cross Reference 20XL037-6FS6, A 6C3-20DF03716, A6C3-20DF03716
