20XXHR200, Timing Pulley

20XXHR200 - Cast Iron Imperial Pitch Pulleys

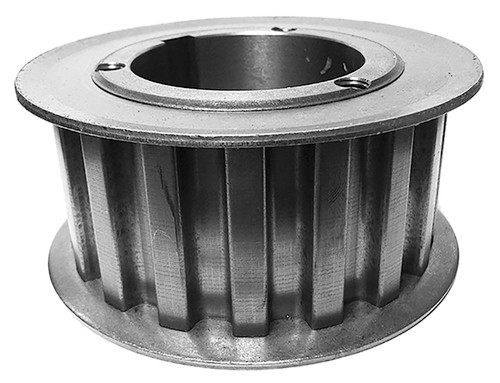

20XXHR200

20XXHR200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

20XXHR200, Timing Pulley, Cast Iron

Learn more about 20XXHR200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20XXHR200
Teeth 20
Tooth Style XXH
For Belt Width (in) 2.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 7.958
Outside Diameter (in) 7.838
Flange Diameter (in) 8.688
Face Width (in) 2.625
Overall Length (in) 3.156
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 202.00
O.D. (mm) 199.10
MOQ 1
Weight (lb) 18.90
Part Number Cross Reference 20XXHR200, 20XXHR200, 20XXHR200
