21-2P03-6FA2, Timing Pulley

21-2P03-6FA2 - Aluminum Powerhouse® Pulleys

Product Details for 21-2P03-6FA2

Comparable to: A 6A51-021DF0306, A6A51-021DF0306

Click to Enlarge

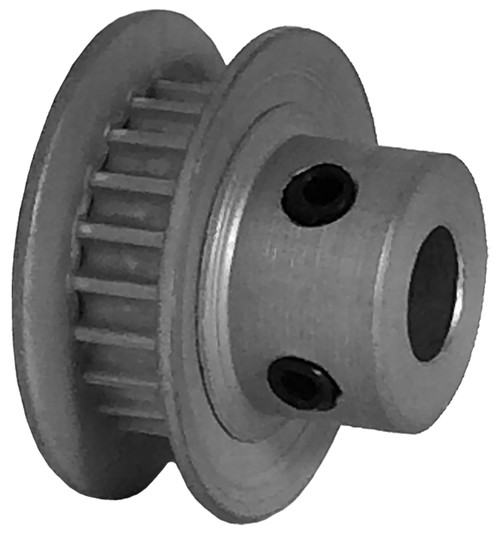

21-2P03-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21-2P03-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21-2P03-6FA2
Teeth 21
Tooth Style 2P
For Belt Width (mm) 3
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.526
Outside Diameter (in) 0.506
Flange Diameter (in) 0.710
Face Width (in) 0.260
Overall Length (in) 0.484
Hub Diameter (in) 0.390
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.160
Unit System Inch
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A51-021DF0306, A6A51-021DF0306
Set Screw Quantity 2
