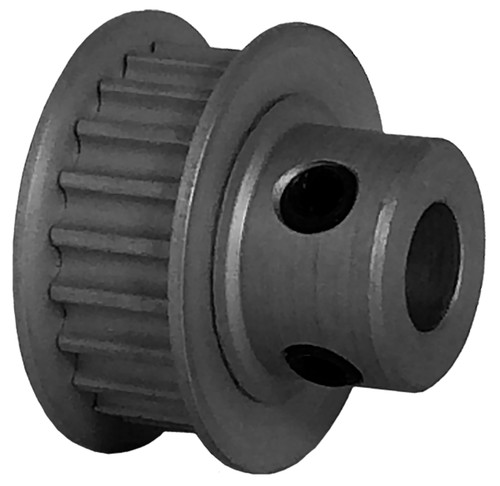

21-3P06-6FA3, Timing Pulley

21-3P06-6FA3 - Aluminum Powerhouse® Pulleys

21-3P06-6FA3

Click to Enlarge

21-3P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21-3P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21-3P06-6FA3
Teeth 21
Tooth Style 3P
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.790
Outside Diameter (in) 0.760
Flange Diameter (in) 0.895
Face Width (in) 0.386
Overall Length (in) 0.691
Hub Diameter (in) 0.500
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.280
Unit System Inch
P.D. (mm) 20.00
O.D. (mm) 19.30
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A53-021DF0608, A6A53-021DF0608, 3MR-21S-06, 3MR-21S-06 6F, 21-3P06-6FA3, 21-3P06-6FA3
Set Screw Quantity 2
