21-3P15-6FA3, Timing Pulley

21-3P15-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 21-3P15-6FA3

Comparable to: 3MR-21S-15, 78436029, 21-3P15-6FA3, 21071072

Click to Enlarge

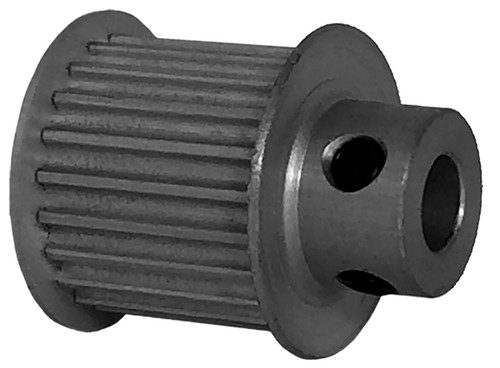

21-3P15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21-3P15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21-3P15-6FA3
Teeth 21
Tooth Style 3P
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.790
Outside Diameter (in) 0.760
Flange Diameter (in) 0.895
Face Width (in) 0.742
Overall Length (in) 1.057
Hub Diameter (in) 0.500
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.636
Unit System Inch
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference 3MR-21S-15, 78436029, 21-3P15-6FA3, 21071072
Set Screw Quantity 2
