21H200-6FS10 Imperial Pitch Pulleys

21H200-6FS10, 21HB200, 21H200-1, 20181958, 114359, 21H2

Product Details for 21H200-6FS10

Comparable to: 21H200-6FS10, 21HB200, 21H200-1, 20181958, 114359, 21H2

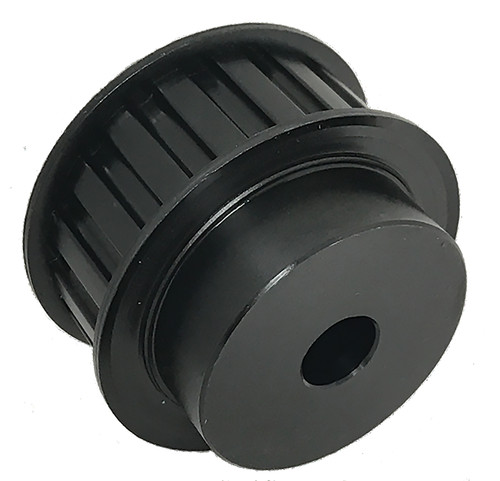

21H200-6FS10, Timing Pulley, Powerhouse Timing, 1 Inch Bore, Cast Iron

Specifications

Product Number 21H200-6FS10
Teeth 21
Tooth Style H
For Belt Width (in) 2.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1 Inch Minimum Plain Bore
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.288
Flange Diameter (in) 3.574
Face Width (in) 2.344
Overall Length (in) 3.156
Hub Diameter (in) 2.625
Min. Bore (in) 1
Pulley Belt Width (in) 2.094
Unit System Inch
Max. Bore (in) 2.375
Weight (lb) 6.10
Part Number Cross Reference 21H200-6FS10, 21HB200, 21H200-1, 20181958, 114359, 21H2
