21LG050 Imperial Pitch Pulleys

21LG050

Product Details for 21LG050

Comparable to: 21LG050,

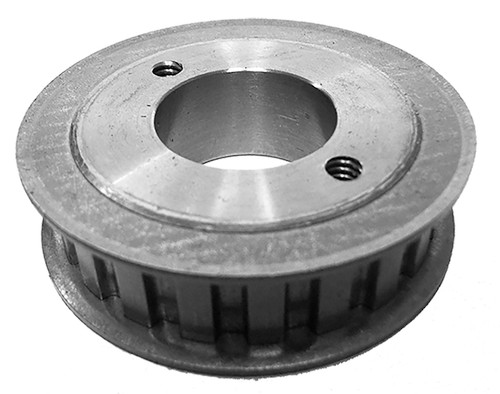

21LG050, Timing Pulley, Powerhouse Timing, G Bushing, Steel

Specifications

Product Number 21LG050
Teeth 21
Tooth Style L
For Belt Width (in) 0.500
Type 4
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore (in) G
Pitch Diameter (in) 2.507
Outside Diameter (in) 2.477
Flange Diameter (in) 2.875
Face Width (in) 0.750
Overall Length (in) 1.375
Unit System Inch
Bushing G
Weight (lb) 0.70
List Price (1-9 Qty.) (USD) 37.44
Discount Price (10-24 Qty.) (USD) 33.7
Discount Price (25-49 Qty.) (USD) 29.95
Part Number Cross Reference 21LG050,

Documentation

Download Catalog 2015_BBMAN_CATALOG_36.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 21LG050_REACH_cert
RoHS Certification 21LG050_RoHS_cert
