21LG100 Imperial Pitch Pulleys

21LG100

Product Details for 21LG100

Comparable to: 21LG100,

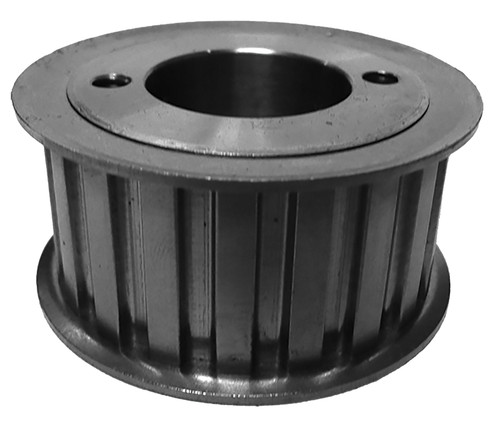

21LG100, Timing Pulley, Powerhouse Timing, G Bushing, Steel

Specifications

Product Number 21LG100
Teeth 21
Tooth Style L
For Belt Width (in) 1.000
Type 4
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore (in) G
Pitch Diameter (in) 2.507
Outside Diameter (in) 2.477
Flange Diameter (in) 2.875
Face Width (in) 1.250
Overall Length (in) 1.875
Unit System Inch
Bushing G
Weight (lb) 1.30
List Price (1-9 Qty.) (USD) 45.24
Discount Price (10-24 Qty.) (USD) 40.72
Discount Price (25-49 Qty.) (USD) 36.19
Part Number Cross Reference 21LG100,

Documentation

Download Catalog 2015_BBMAN_CATALOG_48.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 21LG100_REACH_cert
RoHS Certification 21LG100_RoHS_cert
