21MP012-6CA3, Timing Pulley

21MP012-6CA3 - Aluminum Imperial Pitch Pulleys

21MP012-6CA3

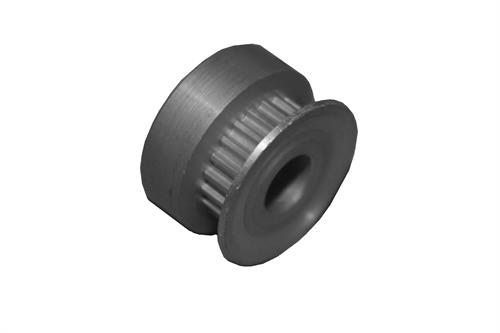

Click to Enlarge

21MP012-6CA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21MP012-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21MP012-6CA3
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.1250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.536
Outside Diameter (in) 0.515
Flange Diameter (in) 0.710
Face Width (in) 0.208
Overall Length (in) 0.438
Hub Diameter (in) 0.710
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.160
Unit System Inch
P.D. (mm) 14.00
O.D. (mm) 13.10
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6N16-022DF1208, A6N16-022DF1208, PB21MXL012, 21MP-012-1/4- 6FCA, 1375K23, 21MP012-6CA3, 21MP012-6CA3
Set Screw Quantity 2

Comparable to: A 6N16-022DF1208, A6N16-022DF1208, PB21MXL012, 21MP-012-1/4- 6FCA, 1375K23, 21MP012-6CA3, 21MP012-6CA3
