21MP025-6CA3 Imperial Pitch Pulleys

21MP025-6CA3, A6A16-021DF2508, A 6A16-021DF2508, 21MP-025 1/4  6FC, 21MXL025-6A X 1/4, 1375K42

Product Details for 21MP025-6CA3

Comparable to: 21MP025-6CA3, A6A16-021DF2508, A 6A16-021DF2508, 21MP-025 1/4 6FC, 21MXL025-6A X 1/4, 1375K42

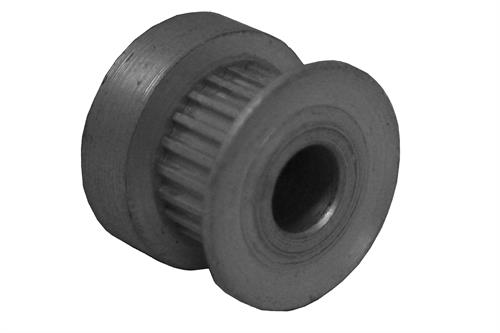

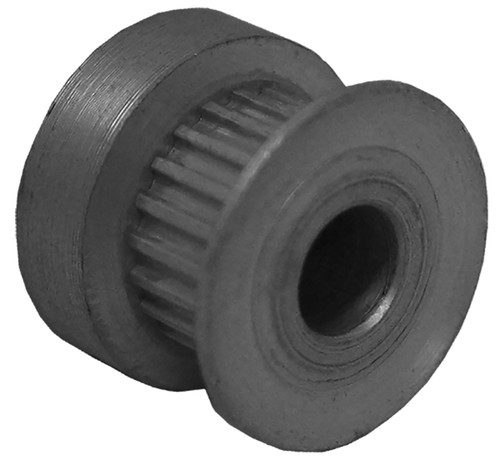

21MP025-6CA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 21MP025-6CA3
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.535
Outside Diameter (in) 0.515
Flange Diameter (in) 0.710
Face Width (in) 0.337
Overall Length (in) 0.563
Hub Diameter (in) 0.710
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) 8.98
Discount Price (10-24 Qty.) (USD) 8.3
Discount Price (25-49 Qty.) (USD) 6.06
Discount Price (50-99 Qty.) (USD) 5.39
Discount Price (100-249 Qty.) (USD) 4.94
Part Number Cross Reference 21MP025-6CA3, A6A16-021DF2508, A 6A16-021DF2508, 21MP-025 1/4 6FC, 21MXL025-6A X 1/4, 1375K42

Documentation

Download Catalog 2015_BBMAN_CATALOG_4.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 21MP025-6CA3_REACH_cert
RoHS Certification 21MP025-6CA3_RoHS_cert
