21MP025-6FA2, Timing Pulley

21MP025-6FA2 - Aluminum Imperial Pitch Pulleys

Product Details for 21MP025-6FA2

Comparable to: A 6A16-021DF2506, A6A16-021DF2506, PB21MXL025, 78260121, 21MP-025 3/16 6F, PT021A06L04T, TP7A3W4-21, 21MXL025-1A X 3/16

Click to Enlarge

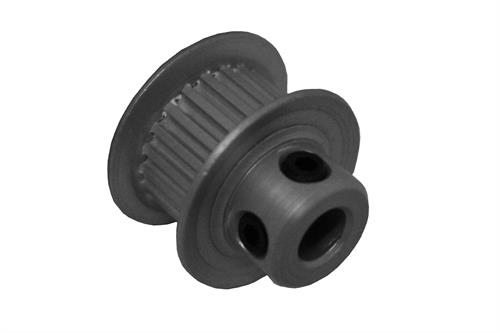

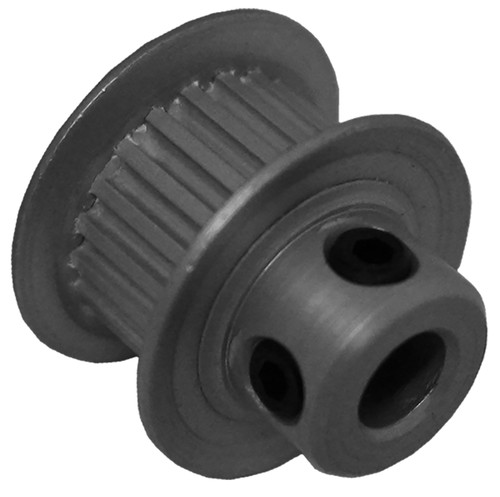

21MP025-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21MP025-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21MP025-6FA2
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.535
Outside Diameter (in) 0.515
Flange Diameter (in) 0.710
Face Width (in) 0.389
Overall Length (in) 0.625
Hub Diameter (in) 0.390
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.290
Unit System Inch
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A16-021DF2506, A6A16-021DF2506, PB21MXL025, 78260121, 21MP-025 3/16 6F, PT021A06L04T, TP7A3W4-21, 21MXL025-1A X 3/16
Set Screw Quantity 2
