21MP037M6FA4 Metric Pulleys

21MP037M6FA4, A 6A16M021DF9504, A6A16M021DF9504

Product Details for 21MP037M6FA4

Comparable to: 21MP037M6FA4, A 6A16M021DF9504, A6A16M021DF9504

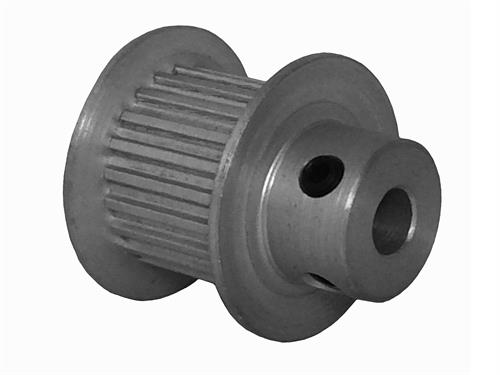

21MP037M6FA4, Timing Pulley, Powerhouse Timing, 4 mm Bore, Aluminum

Specifications

Product Number 21MP037M6FA4
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.375
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 4.00
Face Width (in) 0.514
Set Screw 2 x M2.5 @ 90°
Pulley Belt Width (mm) 10.40
Unit System Metric
P.D. (mm) 13.60
O.D. (mm) 13.10
Flange Diameter (mm) 18.00
Face Width (mm) 13.10
Overall Length (mm) 19.10
Hub Diameter (mm) 9.90
Weight (lb) 0.02
Part Number Cross Reference 21MP037M6FA4, A 6A16M021DF9504, A6A16M021DF9504
