21T5/19-2 Metric Pulleys

21T5/19-2

Product Details for 21T5/19-2

Comparable to: 21T5/19-2,

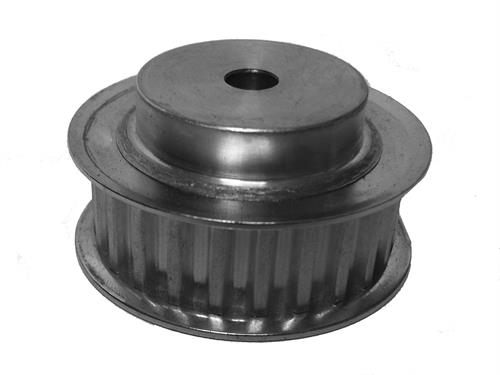

21T5/19-2, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum

Specifications

Product Number 21T5/19-2
Teeth 19
Tooth Style T5mm
For Belt Width (mm) 10.000
Type 6F
Material Aluminum
Flange Material Steel
Bore Type Finished Bore
Bore (mm) 6.00
Pulley Belt Width (mm) 10.00
Unit System Metric
P.D. (mm) 30.40
O.D. (mm) 29.40
Flange Diameter (mm) 36.00
Face Width (mm) 15.00
Overall Length (mm) 21.00
Hub Diameter (mm) 22.00
Weight (lb) 0.08
List Price (1-9 Qty.) (USD) 12.35
Discount Price (10-24 Qty.) (USD) 11.73
Discount Price (25-49 Qty.) (USD) 10.49
Discount Price (50-99 Qty.) (USD) 8.64
Discount Price (100-249 Qty.) (USD) 8.02
Part Number Cross Reference 21T5/19-2,

Documentation

Download Catalog 2015_BBMAN_CATALOG_77.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
For custom parts click here custom.html
REACH Certification 21T5_19-2_REACH_cert
RoHS Certification 21T5_19-2_RoHS_cert
