22-3P09-6FA2, Timing Pulley

22-3P09-6FA2 - Aluminum Powerhouse® Pulleys

Product Details for 22-3P09-6FA2

Comparable to: 22-3P09-6FA2, A 6A53-022DF0906, A6A53-022DF0906

Click to Enlarge

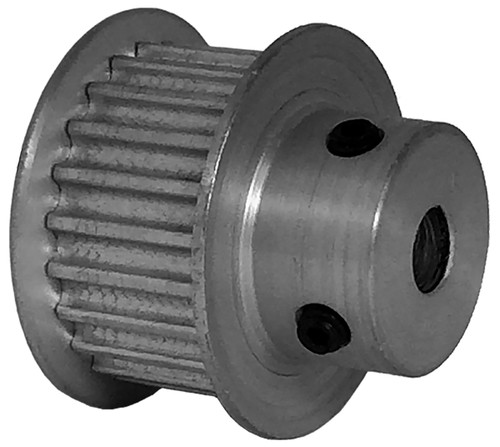

22-3P09-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-3P09-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 22-3P09-6FA2
Teeth 22
Tooth Style GT 3mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.827
Outside Diameter (in) 0.797
Flange Diameter (in) 0.945
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.562
Set Screw 2 x 4-40 @ 90°
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.400
Unit System Inch
Max. Bore (in) 0.312
Weight (lb) 0.03
Part Number Cross Reference 22-3P09-6FA2, A 6A53-022DF0906, A6A53-022DF0906
