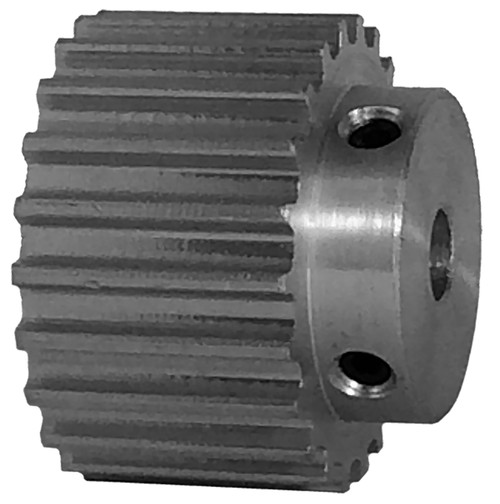

22-5M15-6A3, Timing Pulley

22-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

22-5M15-6A3

22-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

22-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-5M15-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-5M15-6A3
Teeth 22
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.379
Outside Diameter (in) 1.334
Face Width (in) 0.781
Overall Length (in) 1.032
Hub Diameter (in) 0.937
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 35.00
O.D. (mm) 33.90
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference A 6A25-022NF1508, A6A25-022NF1508, 22M5-L015-6, PT022G08L15N, 22-5M15-6A3, 22-5M15-6A3
Set Screw Quantity 2
