22-5M15-6FA3, Timing Pulley

22-5M15-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 22-5M15-6FA3

Comparable to: A 6A25-022DF1508, A6A25-022DF1508, P22-5M-15AL, 78821016, PT022G08L15T

Click to Enlarge

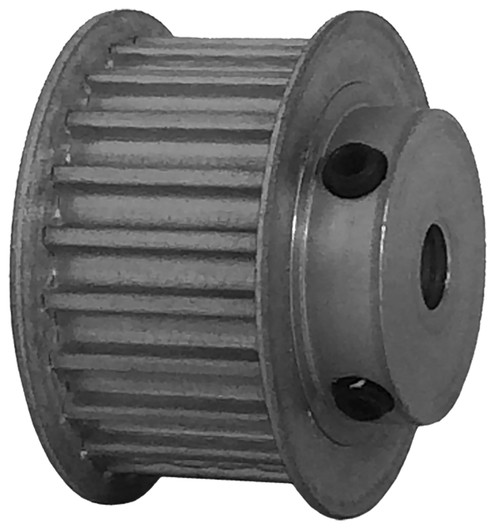

22-5M15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-5M15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-5M15-6FA3
Teeth 22
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.379
Outside Diameter (in) 1.334
Flange Diameter (in) 1.500
Face Width (in) 0.780
Overall Length (in) 1.025
Hub Diameter (in) 0.937
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.650
Unit System Inch
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A25-022DF1508, A6A25-022DF1508, P22-5M-15AL, 78821016, PT022G08L15T
Set Screw Quantity 2
