22-5P25-6FS3, Timing Pulley

22-5P25-6FS3

Click to Enlarge

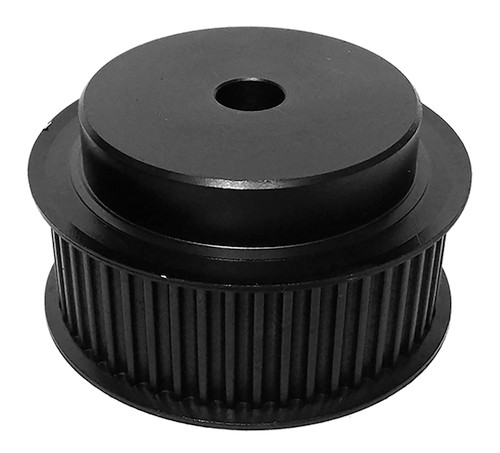

22-5P25-6FS3, Timing Pulley, Steel, Black Oxide,

Learn more about 22-5P25-6FS3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	22-5P25-6FS3
Teeth	22
Tooth Style	5P
For Belt Width (mm)	25.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.250
Bore Description	1/4 Inch Minimum Plain Bore
Pitch Diameter (in)	1.379
Outside Diameter (in)	1.334
Flange Diameter (in)	1.656
Face Width (in)	1.280
Overall Length (in)	1.680
Hub Diameter (in)	0.940
Min. Bore (in)	0.25
Pulley Belt Width (in)	1.100
Unit System	Inch
P.D. (mm)	35.00
O.D. (mm)	33.90
MOQ	1
Weight (lb)	0.58
Part Number Cross Reference	P22-5MGT-25-MPB, 5MR-22S-25, 22-5P25-6FS3, 22-5P25-6FS3
