22-8MX21-6FS6, Timing Pulley

22-8MX21-6FS6 - Steel Powerhouse® MX Pulleys

22-8MX21-6FS6

Click to Enlarge

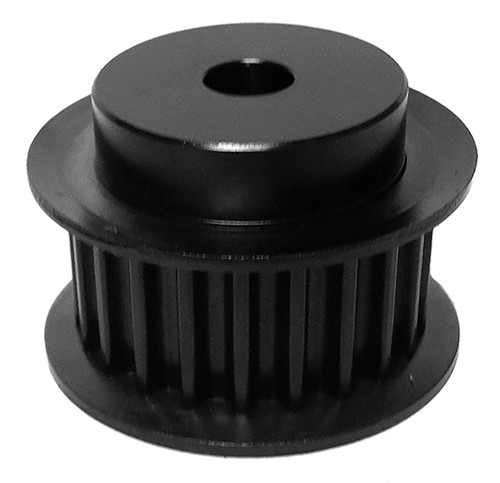

22-8MX21-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 22-8MX21-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-8MX21-6FS6
Teeth 22
Tooth Style 8MX
For Belt Width (mm) 21.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.206
Outside Diameter (in) 2.143
Flange Diameter (in) 2.559
Face Width (in) 1.203
Overall Length (in) 1.656
Hub Diameter (in) 1.766
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.960
Unit System Inch
P.D. (mm) 56.00
O.D. (mm) 54.40
MOQ 1
Weight (lb) 1.41
Part Number Cross Reference PB8MX-22S-21, PB8MCS-22-21, 22G-8M-21-MPB, 20839304, PB8MX-22S-21 MPB, 8MPC22S21MPB, 22-8MX21-6FS6, 481910, 22-8MX21-6FS6

Comparable to: PB8MX-22S-21, PB8MCS-22-21, 22G-8M-21-MPB, 20839304, PB8MX-22S-21 MPB, 8MPC22S21MPB, 22-8MX21-6FS6, 481910, 22-8MX21-6FS6
