22-8MX62-6FS10, Timing Pulley

22-8MX62-6FS10

Click to Enlarge

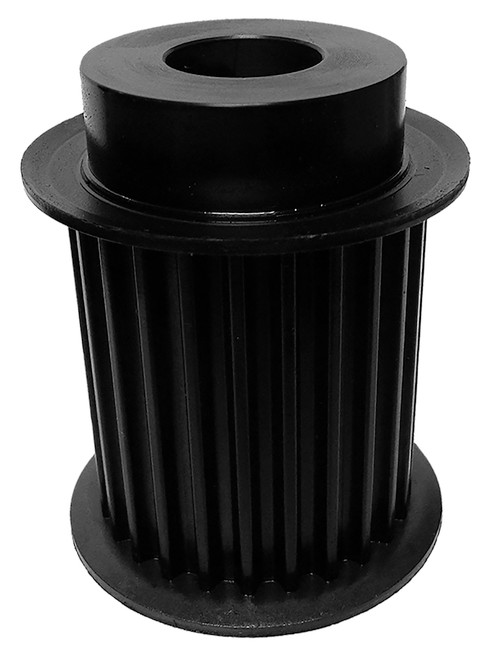

22-8MX62-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 22-8MX62-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	22-8MX62-6FS10
Teeth	22
Tooth Style	8MX
For Belt Width (mm)	62.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	2.206
Outside Diameter (in)	2.143
Flange Diameter (in)	2.559
Face Width (in)	2.906
Overall Length (in)	3.563
Hub Diameter (in)	1.766
Min. Bore (in)	1
Pulley Belt Width (in)	2.670
Unit System	Inch
P.D. (mm)	56.00
O.D. (mm)	54.40
MOQ	1
Weight (lb)	2.40
Part Number Cross Reference	PB8MX-22S-62, PB8MCS-22-62, 22G-8M-62-MPB, 20839306, PB8MX-22S-62 MPB, 8MPC22S62MPB, 22-8MX62-6FS10, 481985, 22-8MX62-6FS10
