224-8MX21-3020, Timing Pulley

224-8MX21-3020

Click to Enlarge

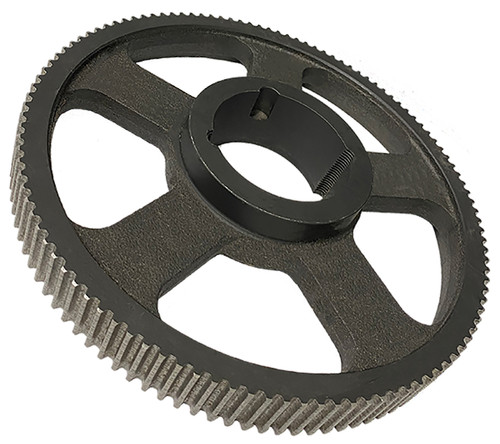

224-8MX21-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 224-8MX21-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	224-8MX21-3020
Teeth	224
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	C-3
Material	Ductile Iron
Finish	Black Oxide
Bore Type	TL
Bore Description	Bored for 3020 Bushing
Pitch Diameter (in)	22.457
Outside Diameter (in)	22.394
Face Width (in)	1.203
Overall Length (in)	2.000
Min. Bore (in)	0.875
Unit System	Inch
Bushing	3020
P.D. (mm)	570.00
O.D. (mm)	568.80
MOQ	1
Weight (lb)	53.40
Part Number Cross Reference	8MX-224S-21, B8MCS-224-21, 224G-8M-21-3020, 20839773, 8MX-224S-21-3020 HT500 SPKT, 8MPC224S21, 224-8MX21-3020, 481949, 224-8MX21-3020
