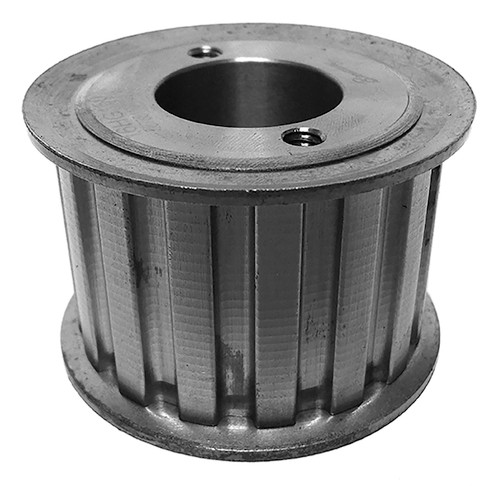

22HH150, Timing Pulley

22HH150 - Cast Iron Imperial Pitch Pulleys

22HH150

22HH150 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

22HH150, Timing Pulley, Cast Iron

Learn more about 22HH150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22HH150
Teeth 22
Tooth Style H
For Belt Width (in) 1.5000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 3.501
Outside Diameter (in) 3.447
Flange Diameter (in) 3.813
Face Width (in) 1.750
Overall Length (in) 1.938
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 89.00
O.D. (mm) 87.60
MOQ 1
Weight (lb) 2.87
Part Number Cross Reference 22HH150, 22HH150, 22HH150
